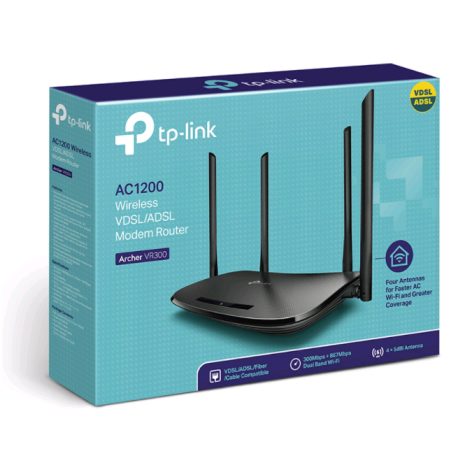

Archer VR300
AC1200 Wireless VDSL/ADSL Modem Router

· Parental Controls: manage responsible internet access for your children
· Guest Network: provides separate access for guests while securing the home network
· Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding
· Quality of Service: prioritizes network traffic by device or application
· IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application
· IPv6: compatible with IPv6 (Internet Protocol version 6)
· Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)



Specifications:

Interface
3 10/100 RJ45 LAN Ports
1 10/100 RJ45 LAN/WAN Port
1 RJ11 Port

VDSL2 Standards
ITU G.993.2, Up to 17a pro¬le (POTS)
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)

ADSL Standards
Full-rate ANSI T1.413 Issue 2,
ITU-T G.992.1(G.DMT),
ITU-T G.992.2(G.Lite),
ITU-T G.994.1 (G.hs),
ITU-T G.995.1

ADSL2 Standards
ITU-T G.992.3 (G.DMT.bis),
ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards
ITU-T G.992.5

Dimensions ( W x D x H )
385*290*76mm

Antenna Type
4 fixed external antennas

Wireless Standards
IEEE 802.11a/n/ac 5GHz,
IEEE 802.11b/g/n 2.4GHz

Wireless Speeds
867Mbps at 5GHz
300Mbps at 2.4GHz

Transmit Power
2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)

Wireless Functions
Access Point / Wireless Bridge, Wireless EnableDisable, SSID Broadcast EnableDisable

Wireless Security
WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
encryptions, QSS(WPS)
