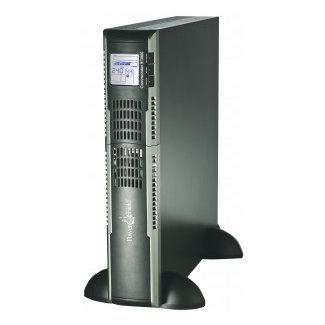

PowerShield COMMANDER RT

With pure sine wave output, the Commander Rackmount Tower guarantees compatibility for all kinds of loads. It's perfect power protection for versatile applications such as networking, telecom and other mission-critical applications.
The ECO mode function allows cost-effective operation of UPS Systems as high as 98%. In this operation mode, load is supplied by the mains. In the event of a mains failure, the inverter takes over the load and provides supply continuity to the connected systems. To provide longer backup time the 2kVA and 3kVA models are expandable to include an additional battery bank.

· Pure sine wave output
· Rack/Tower design
· Built-in boost and buck AVR
· Output power factor 0.8
· Programmable power management outlets
· ECO mode operation for energy saving (ECO)
· Emergency Power Off Function (EPO)
· Hot-swappable battery design
· Long-run models available

Multiple communication available:

· USB port
· RS-232 port
· SNMP slot (option)
· AS400 card (option)
· PowerShield NetGuard® software included.

INPUT
Voltage	240Vac (Nominal)
Voltage Range	162-290 Vac
Frequency Range	50/60Hz ±5Hz (Auto-sensing)
OUTPUT
Output Voltage (AC Mode)	240Vac (Selectable 208/220/230VAC) ±10% AVR
Voltage Regulation (Batt. Mode)	±3%
Frequency Range (Batt. Mode)	50Hz or 60Hz ± 1Hz
Current Crest Ratio	3:1
Transfer Time	6ms (Typical)
Waveform (Batt. Mode)	Pure Sine Wave
EFFICIENCY
ECO Mode (Advanced)	98%
Battery Mode	83%
BATTERY
Standard Mode	Battery Type & Number	12 Vx9AH (x2)
Typical Recharge Time	4 hours recover to 90% capacity
Additional Battery Banks	N/A
PROTECTION
Full Protection	Overload, discharge, thermal, short circuit and overcharge protection
Surge Protection	1560 Joules / 32500 Amps
COMMUNICATIONS & MANAGEMENT
Interface	USB or RS232 as standard, Intelligent slot for  PSSNMP, PSModbus or PSAS400 dry contact
Software	PowerShield NetGuard® software -  supports Windows based operating systems,  Linux, Unix and Mac
LCD Display/Alarm	AC Mode, Batt.Mode, Load Level, Input Voltage,  Output Voltage, Overload, Fault, Low Batt.,  Batt.Time Remaining
Audible Alarm	Battery Mode, Low Battery (Batt. Mode), Fault, Overload
PHYSICAL
Dimension (D x W x H)	380 x 438 x 88mm
Weight (Net/Gross)	15kg/16kg
OPERATING ENVIRONMENT
Temperature	0 - 40°C
Humidity	0 - 90% (RH Non-condensing)
Noise Level	< 45dB
COMPLIANCE
Safety	EN62040-1-1 2003, IEC60950-1-1
EMC	EN62040-2 2006
RoHS	Directive 2011/65/EU
