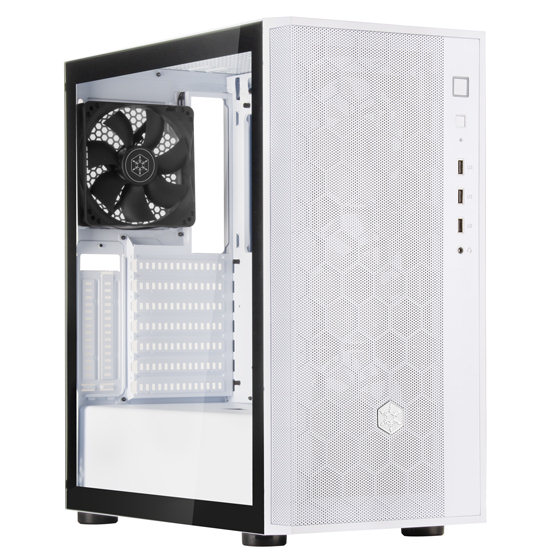

FARA R1 V2
Stylish and distinct tempered glass mid tower ATX chassis

· Fully meshed front panel provides large surface area for air intake
· Precisely designed interior provides sufficient space for high end graphics card and multiple cooling options
· Two USB 3.0 ports and one USB 2.0 port integrated with single audio jack provide great flexibility for various mobile audio accessories
· Removable filters on top and bottom make cleaning out dust a breeze


SPECIFICATIONS

Model No.
· SST-FAR1W-G-V2 (White, tempered glass)

Material
· Steel, plastic, tempered glass / Steel, plastic

Motherboard
· ATX (12" x 11"), Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive bay External
· N/A

Internal
· 3.5" x 2 (compatible with 2.5" x 1)
· 2.5" x 2

Cooling system
· Front 120mm x 3 / 140mm x 2
· Rear 120mm x 1 (120mm black fan x 1 included)
· Side N/A
· Top 120mm x 2, 140mm x 2
· Bottom N/A
· Internal N/A

Radiator support
· Front 120mm / 140mm / 240mm / 280mm / 360mm*
· Rear 120mm
· Top 120mm / 240mm**
· Bottom N/A
· Internal --

Expansion slot
· 7+2

Front I/O port
· USB 3.0 x 2
· USB 2.0 x 1
· Combo audio x 1

Power supply
· Standard PS2(ATX)

Limitation of expansion card
· Length: 340mm (with 25mm front fan installed)
· Width: 167mm

Limitation of CPU cooler
· 161mm

Limitation of PSU
· 200mm (3.5" drive cage installed at the front)
· 171mm (3.5" drive cage installed at the back)

Net weight
· 6.18 kg

Dimension
· 210mm (W) x 455mm (H) x 420mm (D), 40.1 Liters


Remark
* Maximum radiator thickness: 59mm
** Maximum height of motherboard components: 38mm, maximum radiator width: 120mm
