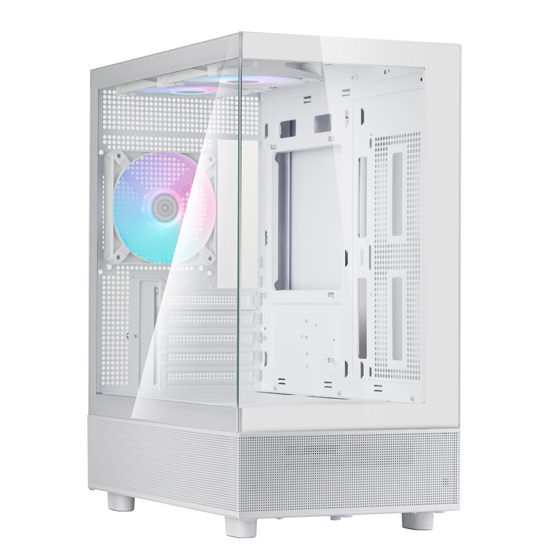

Lucid 04
Panoramic Micro-ATX Chassis with a Striking 270° Field of View

· 270° Panoramic Tempered Glass View
· Supports high-end graphics cards up to 350mm with 5 PCI slots
· 280mm radiator compatibility
· Top I/O includes 1 x USB Type-C, 2 x USB 3.0, 1 x Audio, 1 x Mic


Specifications

Model No.
SST-LD04-W-ARGB (White)

Material
Steel, plastic, tempered glass

Motherboard
Micro-ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")

Drive bay
Internal
3.5"/2.5" x 1
3.5" x 1

Cooling system
Rear 120mm x 1 / 140mm x 1 (120mm x 1 ARGB fans included)
Top 120mm x 2 / 140mm x 2 (120mm x 2 ARGB fans included)
Internal Motherboard Tray: 120mm x 2 [1]
PSU Shroud: 120mm x 2

Radiator support
Rear 120mm / 140mm
Top 120mm / 140mm / 240mm / 280mm

Limitation of CPU cooler
177mm

Expansion slot
5

Limitation of expansion card
Length :350mm
Width :185mm

Power supply
Standard PS2 (ATX)

Limitation of PSU
150mm

Front I/O port
USB Type-C x 1
USB 3.0 x 2
Audio x 1
Mic x 1

Dimension
230mm (W), x 456mm (H), x 364.7mm (D), 38.25 liters
9.06" (W), x 17.95" (H), x 14.36" (D), 38.25 liters

Net weight
5.6 kg
